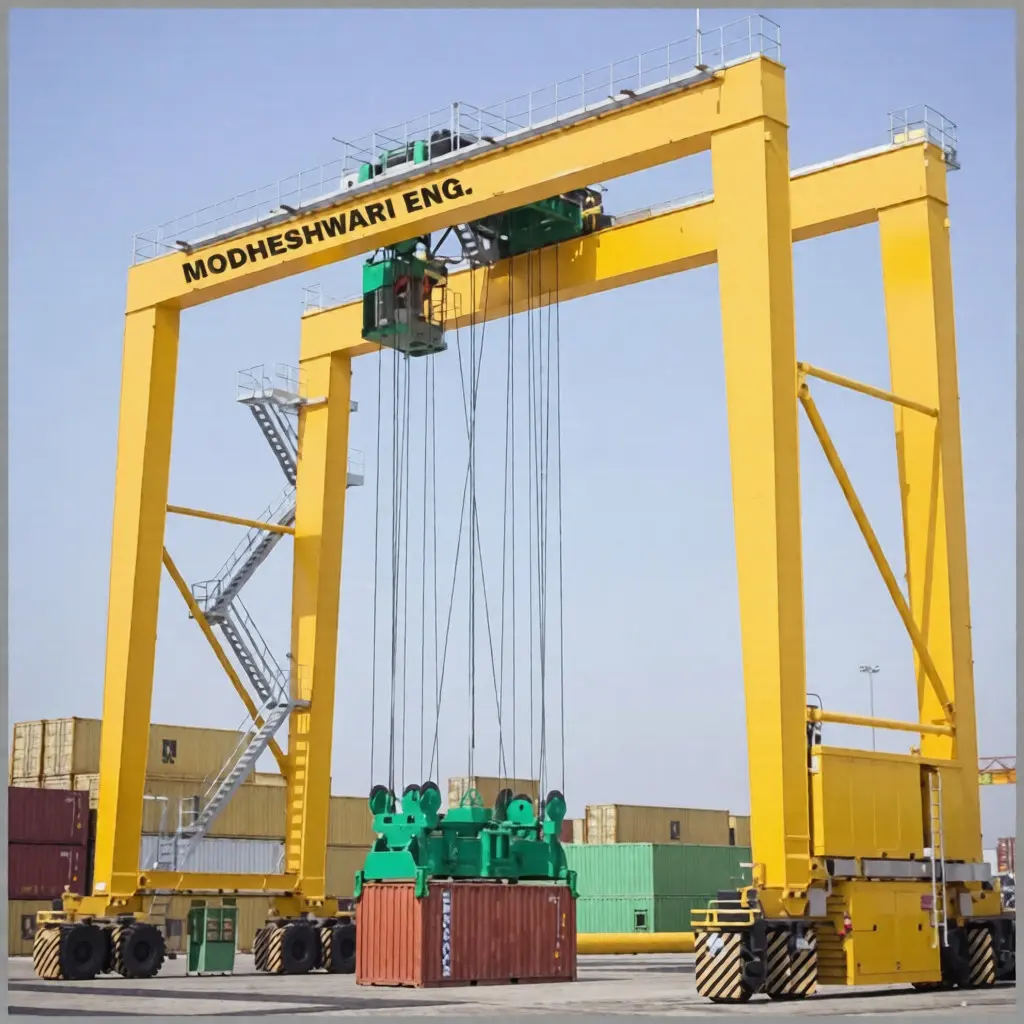

Gantry Goliath Cranes
Coined in 2005, our company is the most reckoned crane manufacturing and supplying company in India. Since our foundation, we expand our business of fabricating quality range of Gantry Crane and Goliath Cranes with other products at a steady growth rate.
In a short span of 10 years, Modheshwari has become a leading of Heavy Duty Gantry/Goliath Cranes exporter in India as well as in many countries of world.
Gantry Cranes Manufacturer are generally used to applications where overhead runways would be very long, expensive to erect, and difficult to retain in alignment. Gantry Crane is generally employed for outdoor applications where required to lift a heavy loads.These types of crane is highly acquired in industrial applications such as shipping, construction, power, material handling, water gate handling, container depot etc.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity | Single Girder crane up to 10 ton Double Girder Crane up to 40 ton |
| Span | Up to 30 mtr |
| Long Travel Speed | Up to 15 mtr/min |
| Cross Travel Speed | Up to 15 mtr/min |
- Used for outdoor applications – Ship yards, Construction area
- Travel on rails are installed on ground surface
- Cost effective – economical solution for heavy duty applications
Design
Modheshwari Gantry/Goliath Cranes are designed, manufactured, erection and testing in accordance with IS – 3177, for overhead traveling crane.
Safety & Duty Class Standards
Our cranes are designed in accordance with Class I & II for medium duty and Class III & IV for heavy-duty operations, ensuring maximum safety as per customer requirements.
Robust Structural Construction
All structural parts are designed as per IS-807 and manufactured using high-quality steel confirming to IS-226 for unmatched durability and reliability.
High-Performance Drive System
All drive units are engineered to deliver smooth, efficient, and long-lasting performance under rigorous industrial conditions.
Advanced Modular Hoist Design
Hoists are built according to IS-3938 in modular construction with short headroom and antifriction ball bearings in an oil bath for superior lubrication and low maintenance.
Maintenance-Friendly Engineering
Our crane design is simplified to ensure quick repairs, easy inspection, and minimal downtime during maintenance operations.
Heavy-Duty Lifting Components
Heavy-duty forged hooks (IS-3815) and special plough steel wire ropes (IS-2266) ensure maximum safety and high load-handling capacity. Twin or central LT drive arrangements are available on request.
Motors & Brakes
- The motors used are specially crane duty suitable for frequent starting, reversing and braking in accordance with IS 325.
- All trolley are drive motors have suitable AC / DC / brakes as std. equipments with smooth running properties.
Controls
- The crane is controlled from pendent push button station is suspended from one end of bridge at a suitable height from the floor level, operating at 110 V or 420 V or 240 V which ensure safety to the operator.
- Dust proof powder coated sheet – metal housing consists of contactors overload relays fuses, transformers etc.
- Emergency stop button in all cranes to shutting of the power to the main connectors.
Optional Features
Enhance your crane with these additional features tailored to your specific requirements.
Motors & Brakes
All structural parts of crane are applied with single coat of primer and two coats of synthetic enamel paints for durability and corrosion resistance.
Epoxy paint and P.U. paints are available on request for enhanced protection in demanding environments.
